55W UV Water Sterilizer (12 GPM)

Jordan Pumps 55W UV Water Sterilizer (12 GPM)

Filters remove sand, silt and chlorine, but they don’t kill bacteria. The Jordan 55W UV Water Sterilizer adds that final layer of protection. As water flows through the stainless steel chamber, it passes a germicidal UV lamp that exposes suspended micro-organisms to ultraviolet light. No chemicals are added, and water leaving the unit is ready to use straight away, with no further contact time needed.

It’s a simple, chemical-free way to add peace of mind to borehole, tank and municipal water at home, on the farm or in a small business.

How It Works

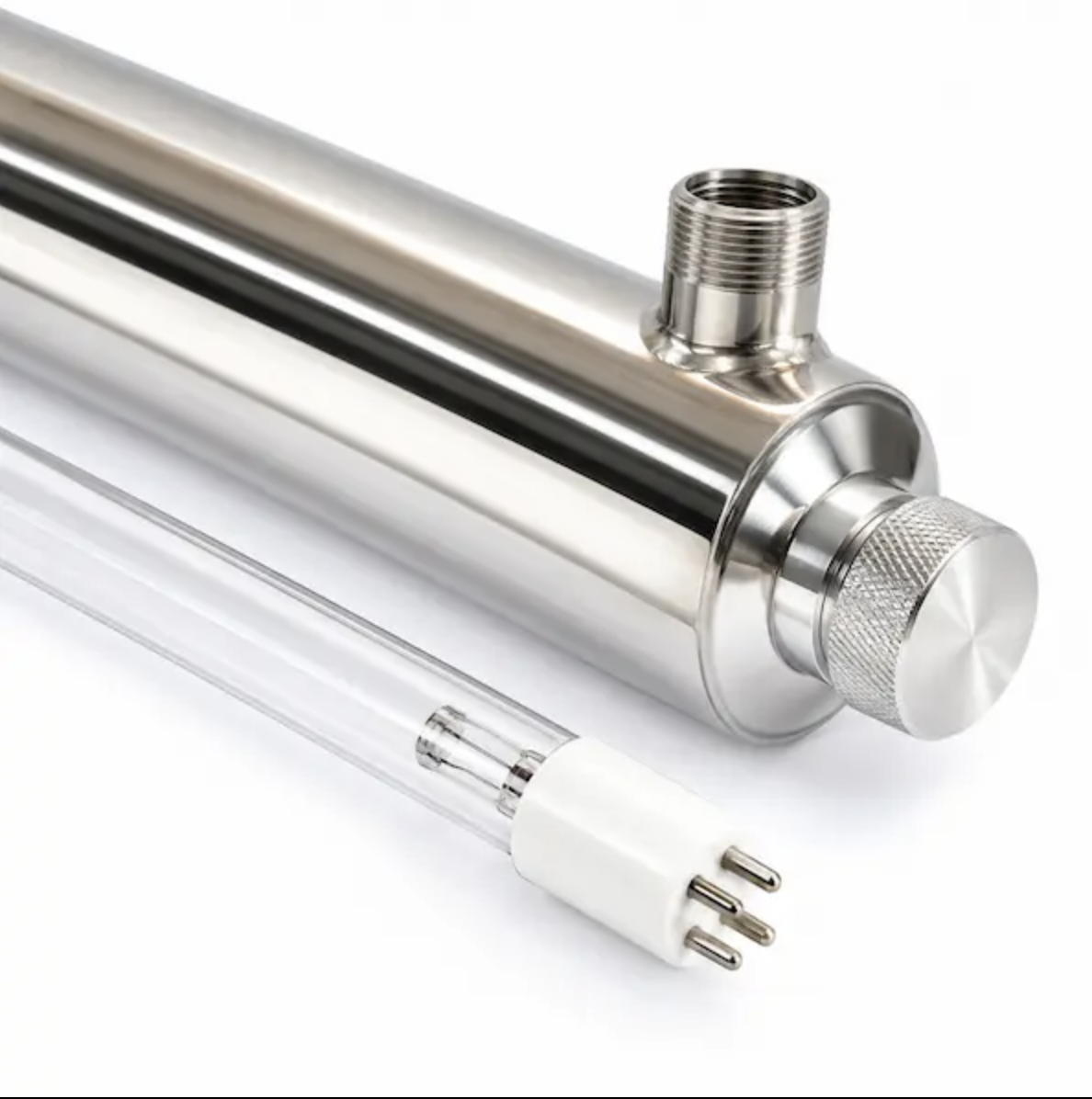

• Water enters the sterilizer and flows through the space between the quartz sleeve and the chamber wall.
• Micro-organisms in the water are exposed to the UV light from the germicidal lamp.
• Water leaving the sterilizer is instantly ready for use.

The UV dose depends on flow: the slower the water moves through the chamber, the longer it is exposed.

Features

• 55W UV lamp, rated for up to 12 GPM (about 45 L/min)
• Chamber and chamber heads made from passivated, electro-polished 304 stainless steel
• Mounts horizontally or vertically
• Removable dual chamber heads that rotate independently, for easier installs and retrofits
• Tool-free lamp change through the end caps, without disconnecting the water supply or draining the unit
• Electronic ballast with an LED indicator showing the lamp is on, plus a built-in audible alarm for lamp failure
• Instant treatment, with no chemicals and no contact time
• Ideal as the final stage after a 3-stage water filter
• 6-month manufacturer’s warranty

Specifications

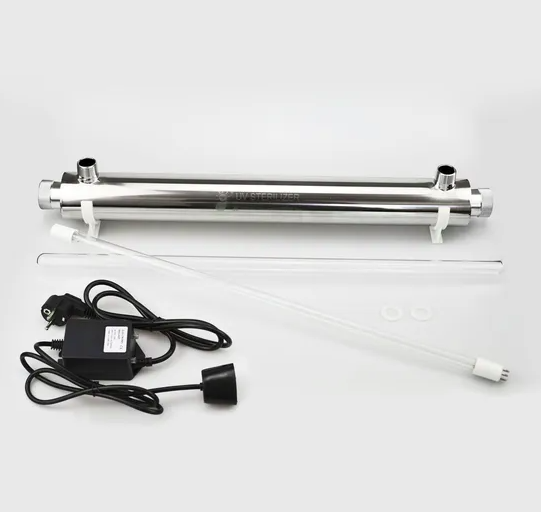

What’s Included

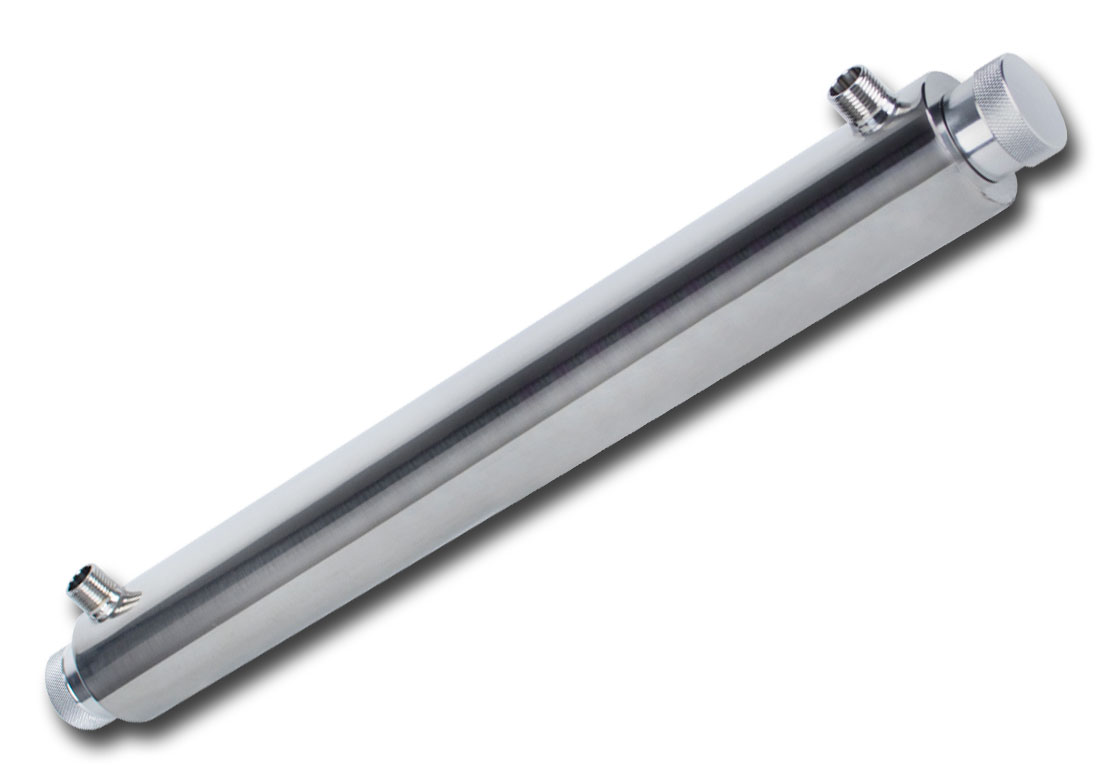

• Reactor chamber (304 stainless steel)
• Quartz tube

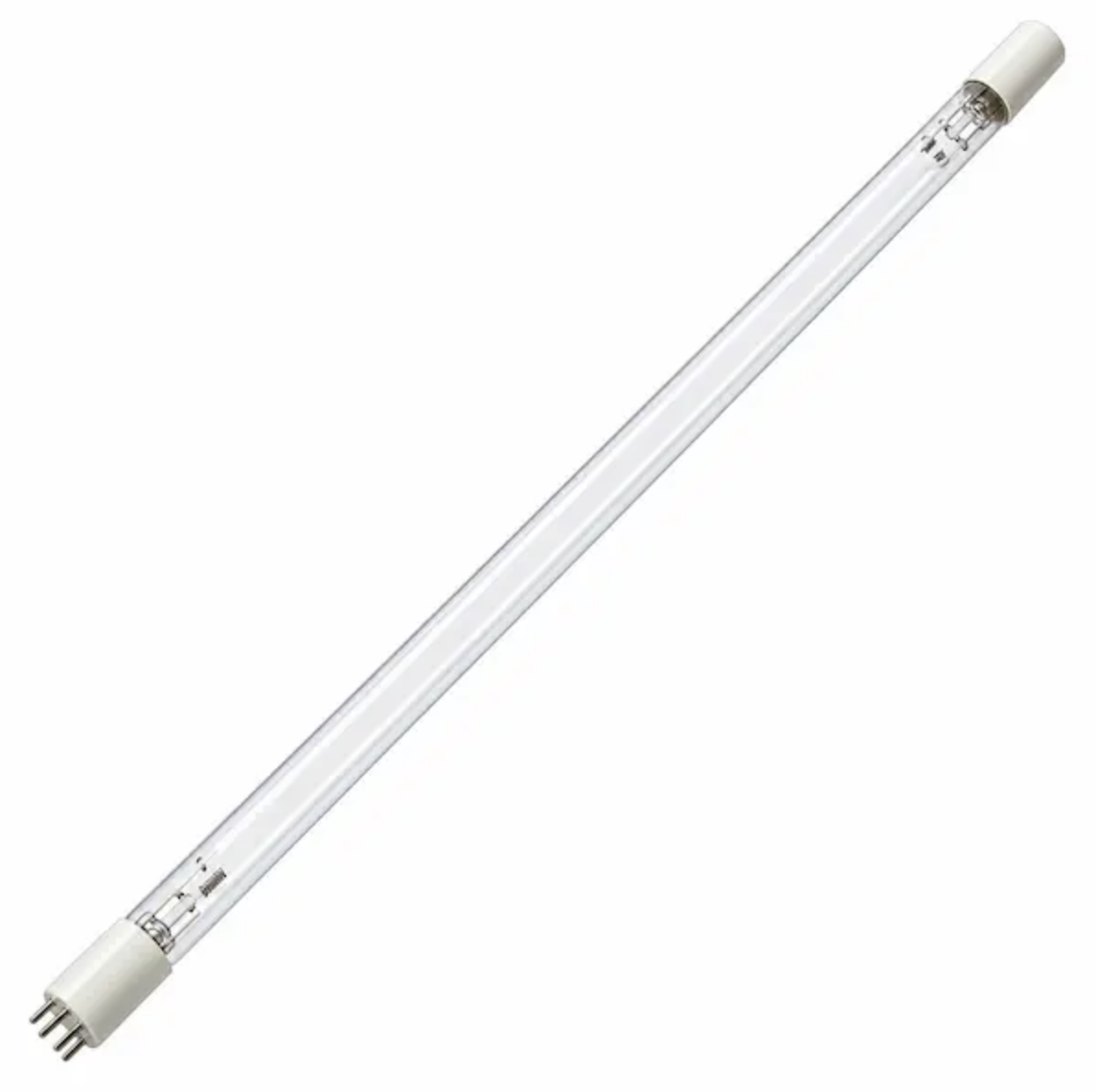

• UV lamp
• O-rings
• Open end nut and closed end nut
• 4-pin electrical socket and cover cap
• Electronic ballast
• Plastic mounting brackets

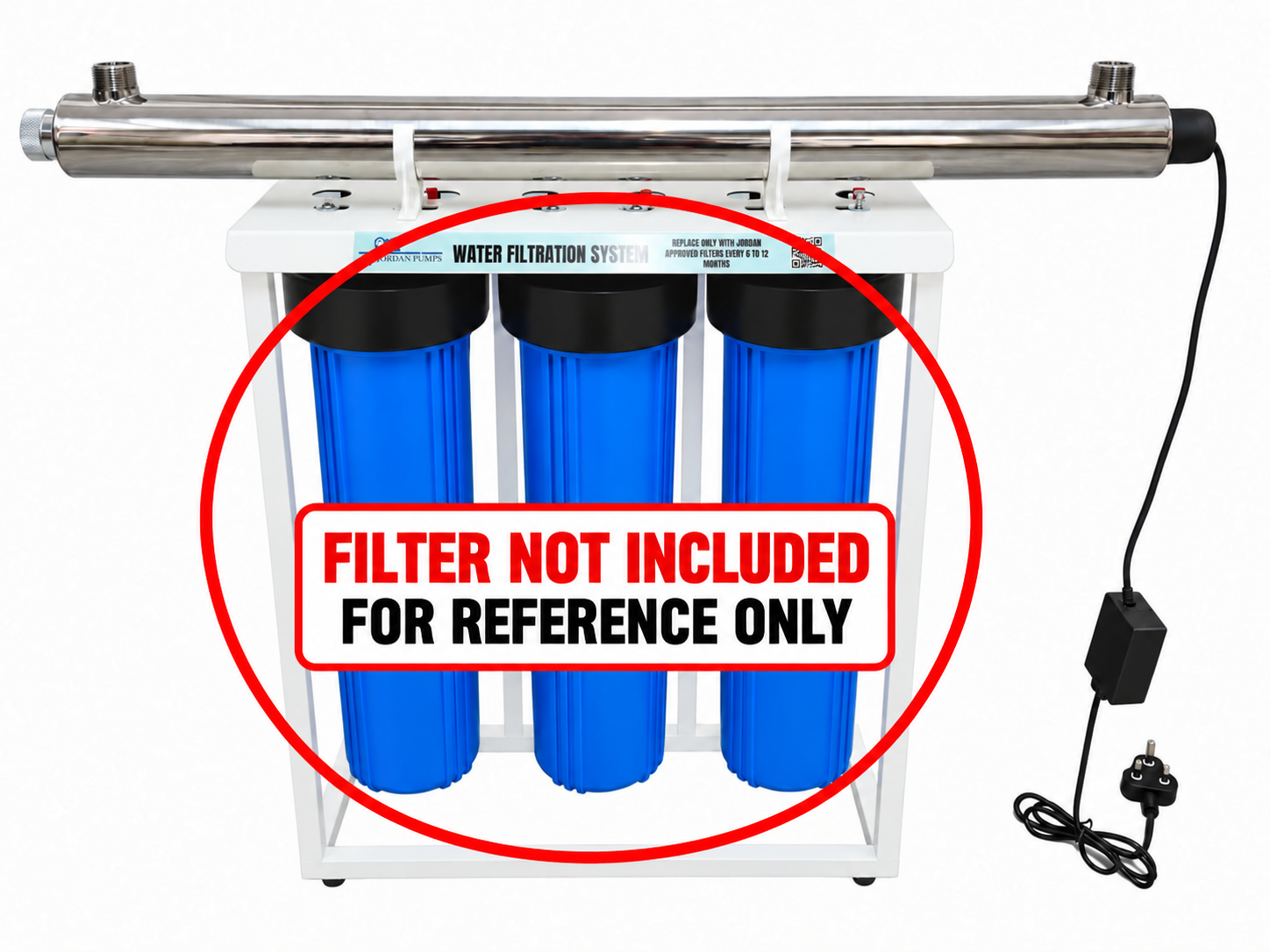

Please note: water filters are not included. The photo of the sterilizer mounted above a 3-stage filter is for reference only.

Where to Install It

• Install the sterilizer after all other water equipment, such as filters, softeners, pumps and pressure tanks, so treated water isn’t re-contaminated by these units.
• Fit it as close to the point of use as possible.
• It is designed for visually clear water, so a sediment and carbon filter in front of it, such as our 3 Stage 20″ Big Blue Whole House Water Filtration System, is the ideal setup.
• Use metal fittings and at least 10 inches (about 25 cm) of copper pipe on the outlet, to handle heat expansion and UV exposure.
• Install in a dry spot with room to remove the lamp, and have the electrical connection done by a qualified electrician.

It is not intended for water with obvious contamination, such as raw sewage, or for turning wastewater into drinking water.

Installation Instructions

Read the step-by-step guide and download the full installation manual here: 55W UV Water Sterilizer: Installation & Maintenance Instructions.

📄 View the installation instructions
