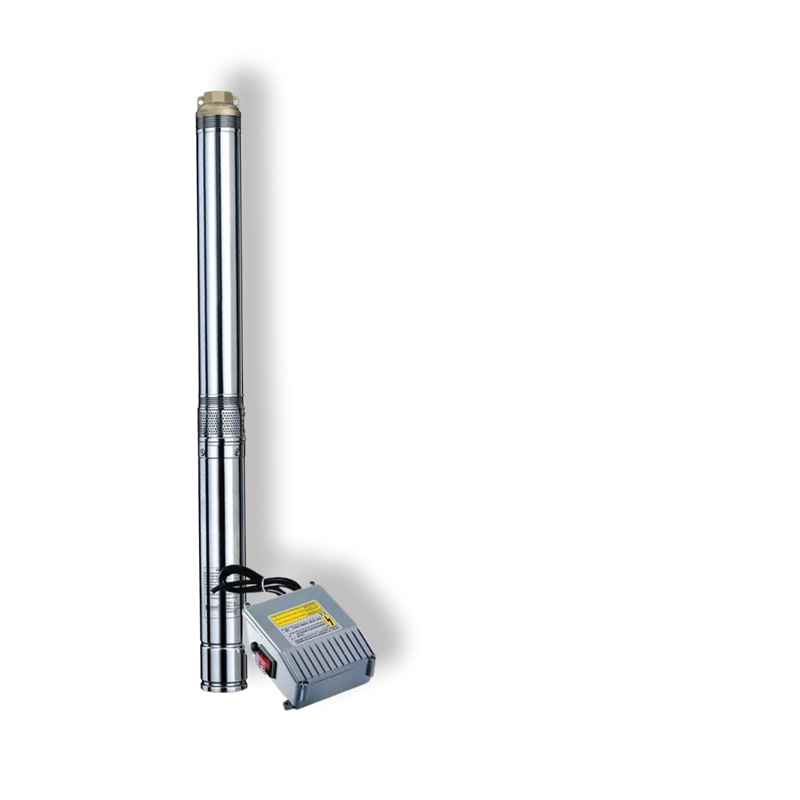

1.5kW Borehole Submersible Pump and Motor 4 Inch (400V)

4 Inch – Borehole Pump and Motor Set (40mm Outlet)

This pump has can be installed at a maximum depth of 138m borehole.

It can be connected to 400V power (AC or Generator)

Operating Conditions
Maximum fluid temperature: up to 35 C
Maximum sand content: 0.3%

Motor & Pump

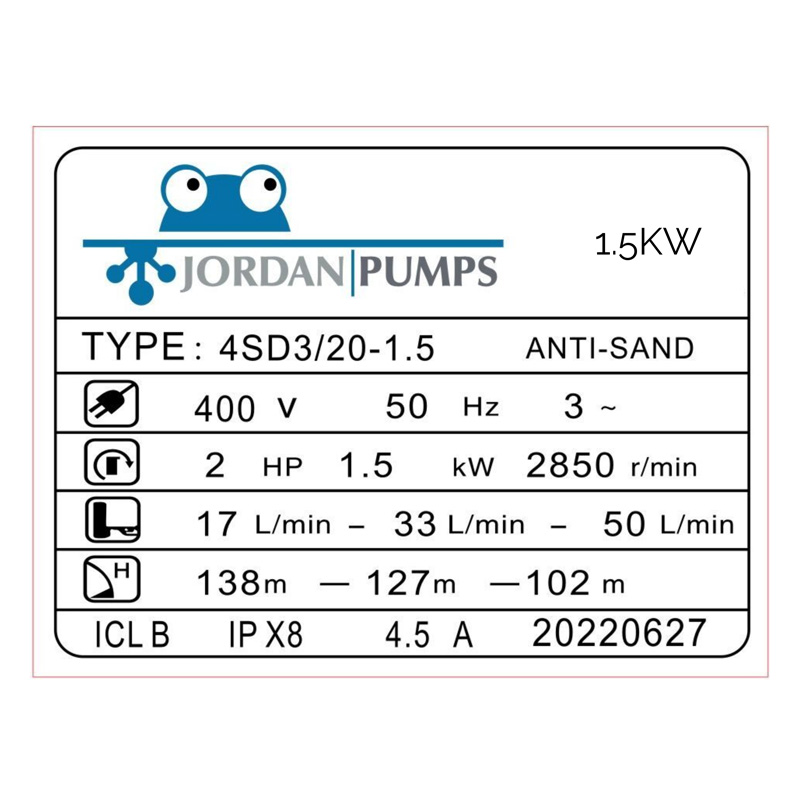

Three-Phase : 380V – 420V 1.5kw / 2HP / 50Hz
4SD3/20 (20 Stage Pump)

What’s in the box
1 x 1.5kw 400V Submersible Motor
1 x 1.5kw – 3/20 Wet End (Pump)
1x Operation & Installation Manual

Fitment of a Non Return Valve Recommended
