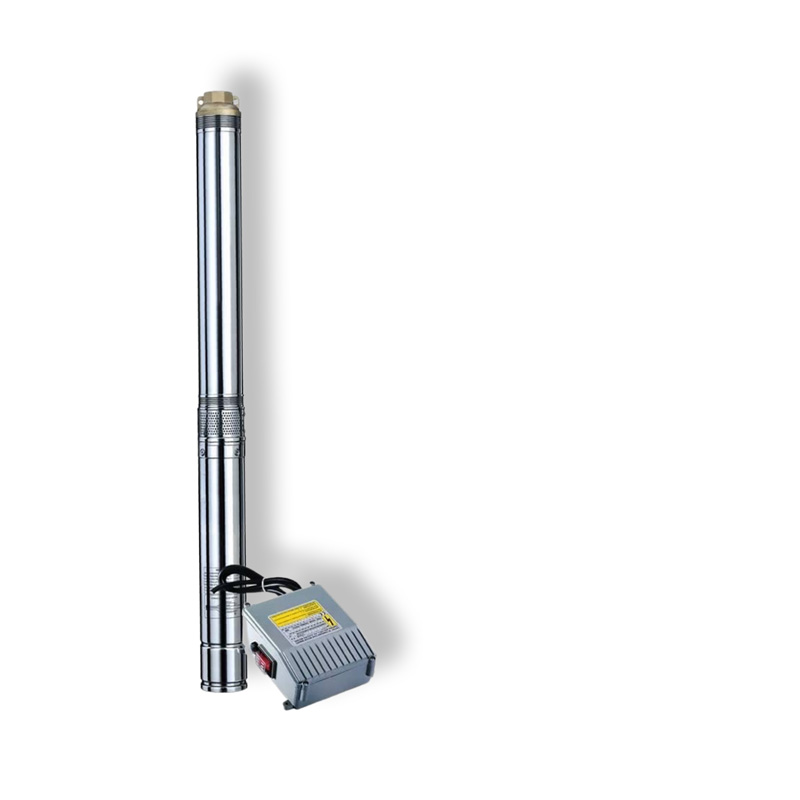

0.75kW Submersible Borehole Pump, Motor & Controlbox 4 Inch (220V)

4 Inch – Borehole Pump and Motor Set (40mm Outlet)

This pump has can be installed at a maximum depth of 69m borehole.

It can be connected to 230V power (AC or Generator)

Operating Conditions
Maximum fluid temperature: up to 35 C
Maximum sand content: 0.3%

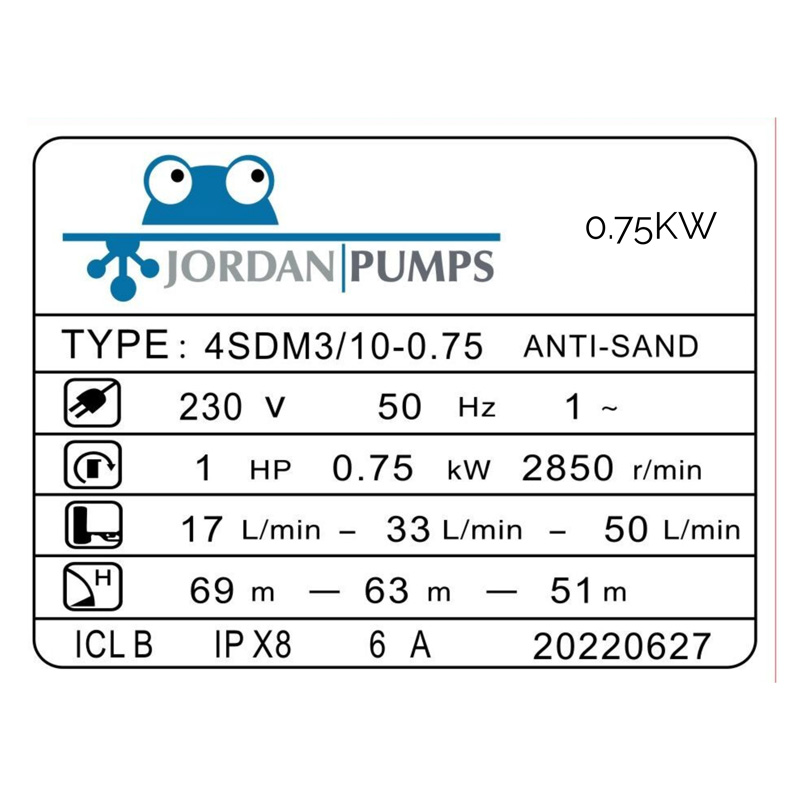

Motor & Pump
Three-Phase : 220V – 240V 0.75kw / 1HP / 50Hz
4SDm3/10 (10 Stage Pump)

What’s in the box

• 1 x 0.75kw 230V Submersible Motor
• 1 x 0.75kw – 3/10 Wet End (Pump)
• 1 x 230v Control Box
• 1x Operation & Installation Manual

Fitment of a Non Return Valve Recommended
